Series 750M Series Info EDP# 99020 3x75x20mm BALL 4FL 20mm F/L

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
4 3.0000 20.0000 3.0000 - 75.0000 - - - BALL - 0.0200

DETAILS

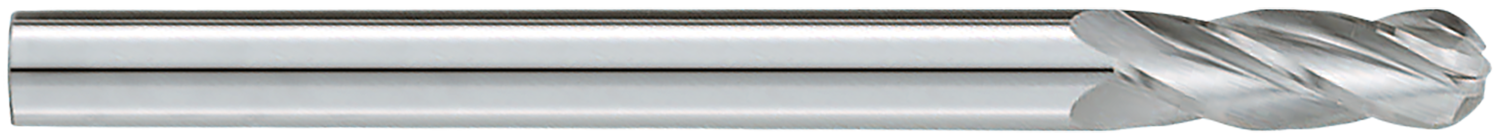

3x75x20mm BALL 4FL 20mm F/L

General Purpose
Extra Length - Ball End - 4 Flutes
Solid submicron grain carbide end mill - center cutting
Extended reach
Can be modified with a neck within 48 hours
Extremely versatile

TOLERANCES

flute dia. +0.000-0.050mm
shank dia. h6
ball radius +0.000-0.025mm

TECH PAGES

Fractional
Metric
Catalog

QUANTITY ON HAND

usa 5
uk 3

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $25.42 $24.31 $23.21 $22.10

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
