Series 610D Series Info EDP# 94068 4x75mm SQ 4FL 25mm F/L *DIAMOND*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
4 4.0000 25.0000 4.0000 - 75.0000 - - - SQ - 0.0300 DIAMOND

DETAILS

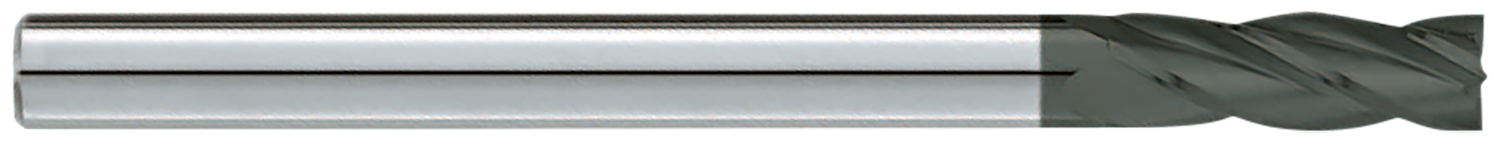

4x75mm SQ 4FL 25mm F/L *DIAMOND*

For Graphite, Fiber-reinforced Plastics, Carbon Fiber
Extra Length - Square End - 4 Flute - Diamond Coating
Solid grade C-2 carbide end mill - center cutting
Crystalline diamond coating
Can be modified with a neck in 48 hours

TOLERANCES

flute dia. +.000-.002" (+.000-.050mm)
shank dia. h6

TECH PAGES

QUANTITY ON HAND

usa 11
uk 4

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $142.07 $135.89 $129.72 $123.54

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
