Series 855RA Series Info EDP# 83527 3x38mm .2mm 5FL 8mm F/L *AlTiN*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
5 3.0000 8.0000 3.0000 - 38.0000 - - 0.2000 RAD - 0.0100 ALTIN

DETAILS

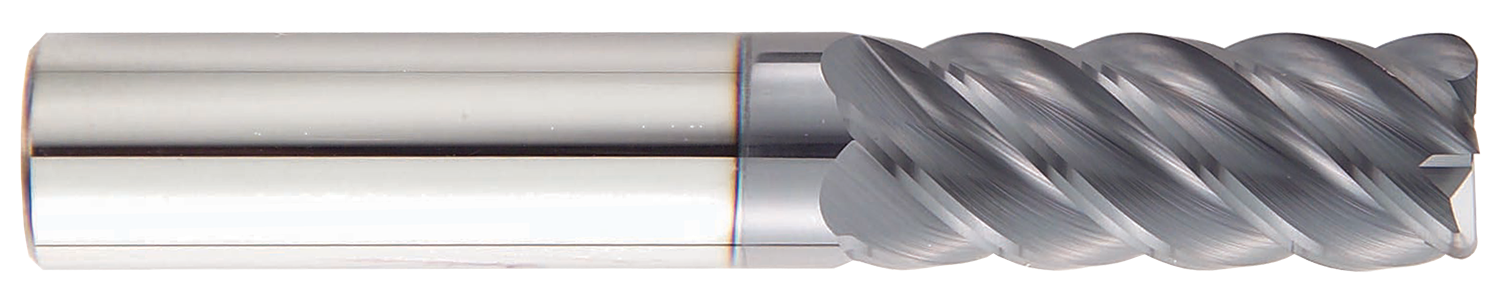

3x38mm .2mm 5FL 8mm F/L *AlTiN*

For Steels, Stainless Steel, and Exotics
Corner Radius - 5 Flute - 45 Degree Helix - AlTiN Coating
Solid submicron grain carbide end mill - center cutting
High performance milling
Rigid work holding, machine stability and part integrity are critical
Dry or semi-dry machining
Improved finishes in titanium
Heavy core

TOLERANCES

flute dia. +0.000-0.050mm
shank dia. h6
radius +0.025-0.025mm

TECH PAGES

QUANTITY ON HAND

usa 100+
uk 52

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $16.17 $15.47 $14.76 $14.06

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
