Series 1180 Series Info EDP# 70181 #19 (.1660") 5xD H/P 3FL DR *ALUMASTAR*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
3 0.1660 1.1250 0.1660 - 2.7500 - - - 140° - 0.0300 ALUMASTAR

DETAILS

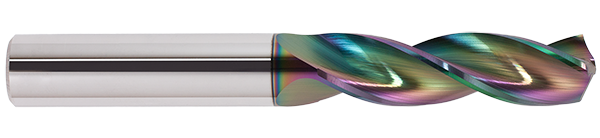

#19 (.1660") 5xD H/P 3FL DR *ALUMASTAR*

For Aluminum and other soft materials <40Rc
3 Flutes - Alumastar Coating
High performance solid submicron grain carbide drill
No spot drilling required
Unique point geometry and coating for higher speeds and feeds
High performance drill point
Live tooling recommended on lathe processes

TOLERANCES

dia. +.0000-.0005" (+0.0000-0.0127mm)
overall length +.125-.125" (+3.175-3.175mm)
flute length +.125-.125" (+3.175-3.175mm)

TECH PAGES

QUANTITY ON HAND

usa 32
uk Call

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $45.93 $43.93 $41.94 $39.94

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
