Series VRX-6 Series Info EDP# 60182 16x100mm .5mm 6FL 32mm F/L 50mm R/L *AlTiN*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
6 16.0000 32.0000 16.0000 14.6000 100.0000 50.0000 18.0000 0.5000 RAD - 0.6100 ALTIN

DETAILS

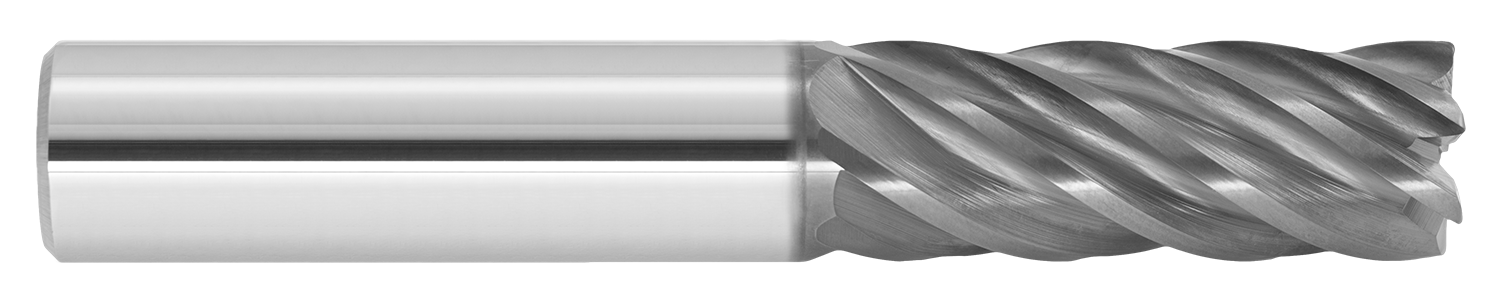

16x100mm .5mm 6FL 32mm F/L 50mm R/L *AlTiN*

For Inconel, pH materials, Titanium, and Tool Steels >40Rc
6 Flute - Rougher/Finisher, Corner Radius, AlTiN Coating
Solid submicron grain carbide end mill - center cutting
6 flutes for better finish and longer tool life
Reduces vibration for more aggressive machining resulting in
less cycle times and greater productivity
Staggered flute geometry
Engineered for High Efficiency Milling

TOLERANCES

flute dia. +.000-.002" (+.000-.050mm)
shank dia. h6
radius +.001-.001" (+0.025-0.025mm)

TECH PAGES

QUANTITY ON HAND

usa 22
uk 5

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $135.57 $129.68 $123.78 $117.89

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
