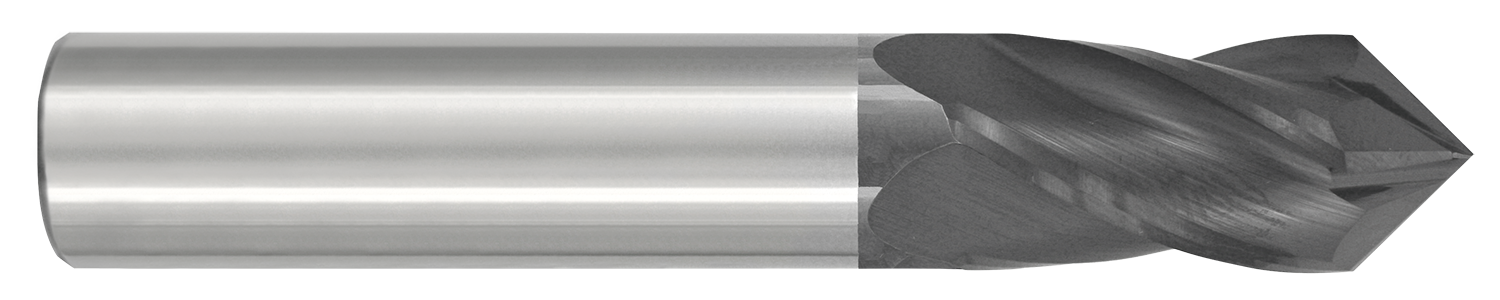

Series 154MA Series Info EDP# 58346 1/8" DRILL/MILL 4FL 1/2" F/L 82 DEG PT *TiALN*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
4 0.1250 0.5000 0.1250 - 1.5000 - - - 82° - 0.0120 TIALN

DETAILS

1/8" DRILL/MILL 4FL 1/2" F/L 82 DEG PT *TiALN*

Drill/End Mill
4 Flutes - TiAlN Coating
Solid submicron grain carbide
Included angle to a point - Center Cutting
Tools Do Not have drill point geometry
Extremely versatile
Point tolerance +/- 30 minutes

TOLERANCES

flute dia. +.000-.002" (+0.000-0.050mm)
shank dia. h6

TECH PAGES

QUANTITY ON HAND

usa 15
uk Call

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $14.32 $13.70 $13.07 $12.45

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
