Series VHM Series Info EDP# 49764 1/2x6" W/F 4FL 1-1/2" F/L 4" R/L *AlTiN*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
4 0.5000 1.5000 0.5000 0.4800 6.0000 4.0000 2.5000 - CMFR Y 0.5600 ALTIN

DETAILS

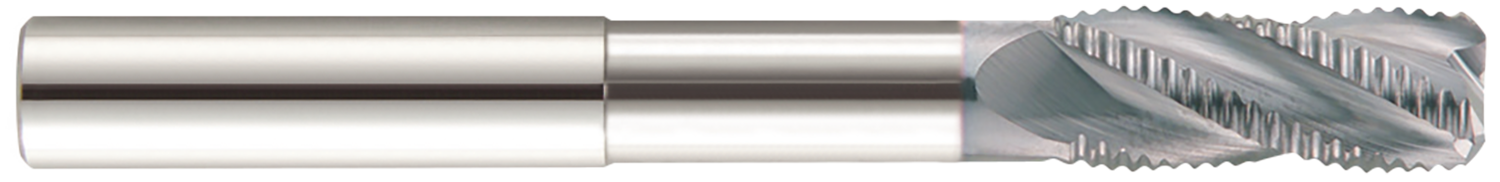

1/2x6" W/F 4FL 1-1/2" F/L 4" R/L *AlTiN*

For Stainless Steel, Inconel, pH materials, Cold Rolled Steel, Titanium, Tool Steels under 40Rc
VHM - Staggered Flute Kunckle Rougher / Ripper - 4 Flutes - AlTiN Coating
Solid submicron grain carbide end mill - center cutting
State-of-the-art rougher using VRX technology
Reduces tool pressure for more aggressive machining
Recommended for pocket milling
Variable flute geometry

TOLERANCES

flute dia. +.000-.002" (+0.000-0.050mm)
shank dia. h6
neck dia. +.000-.005" (+0.000-0.127mm)

TECH PAGES

QUANTITY ON HAND

usa 51
uk Call

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $132.93 $127.15 $121.37 $115.59

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
