Series 170RA Series Info EDP# 30706 3/32-.010"CR EM 4FL 3/16" F/L 1/8" SH *TiAlN*

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
4 0.0938 0.1875 0.1250 - 1.5000 - - 0.0100 RAD - 0.0100 TIALN

DETAILS

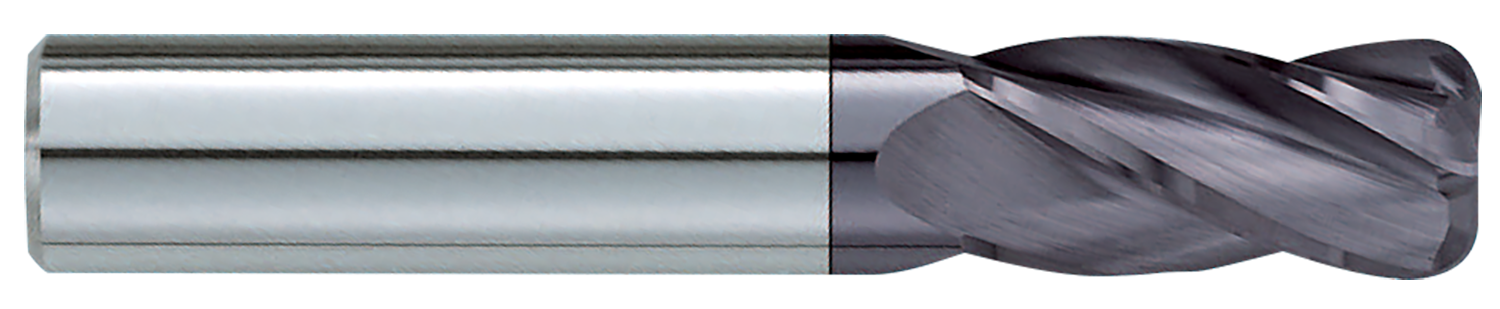

3/32-.010"CR EM 4FL 3/16" F/L 1/8" SH *TiAlN*

General Purpose
Stub Length - Corner Radius - 4 Flutes - TiAlN Coating
Solid submicron grain carbide end mill - center cutting
Dry or semi-dry machining
For stronger corners and part radius
Extremely versatile

TOLERANCES

flute dia. +.000-.002" (+0.000-0.050mm)
shank dia. h6
radius +.001-.001" (+0.025-0.025mm)

TECH PAGES

QUANTITY ON HAND

usa 94
uk Call

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $12.57 $12.02 $11.48 $10.93

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote

WARNING:

This product can expose you to chemicals including cobalt, which is known to the State of California to cause cancer. Click here for more information.
