Series 380M Series Info EDP# 27070 3/8" N/C BALL EM 2FL 7/8" F/L W/F

Flutes Flute Diameter Flutes Length Shank Diameter Neck Diameter Overall Length Reach Length _(L.B.S.) Neck Length Behind Flutes Corner Radius End
Type Flat Weight _(lbs) Coating
2 0.3750 0.8750 0.3750 - 2.5000 - - - BALL Y 0.1200

DETAILS

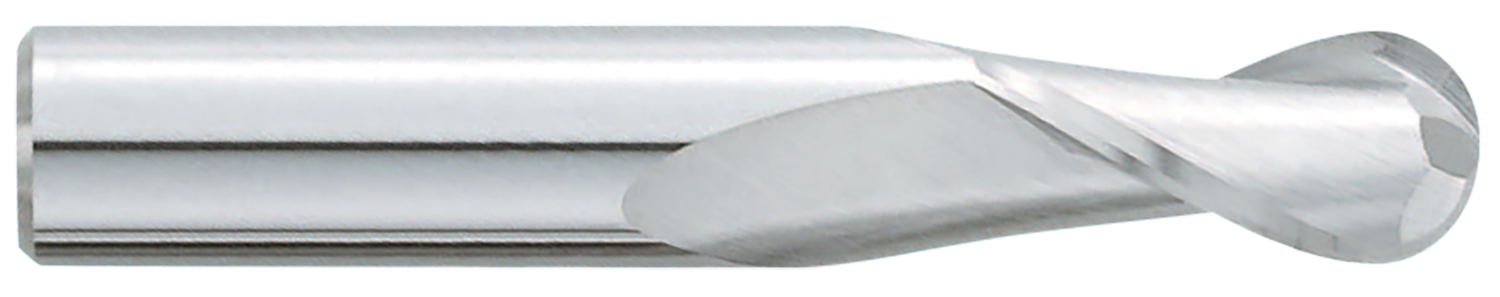

3/8" N/C BALL EM 2FL 7/8" F/L W/F

General Purpose - N/C Tolerance
Standard Length - Ball End - 2 Flutes
Solid submicron grain carbide end mill - center cutting
Excellent for keyways
Tight tolerances for precision machining
For use when matching tools are necessary

TOLERANCES

flute dia. +.001"-.000 (+0.025-0.000mm)
shank dia. h6
Ball radius +.0005-.0000" (+0.0127-0.000mm)

TECH PAGES

QUANTITY ON HAND

usa 19
uk Call

PRICING

QUANTITY: 1-11 12-24 25-49 50-100
PRICING: $43.84 $41.93 $40.03 $38.12

how to buy >

Not quite what you’re looking for? Request a Special Tool Quote
